Slitters

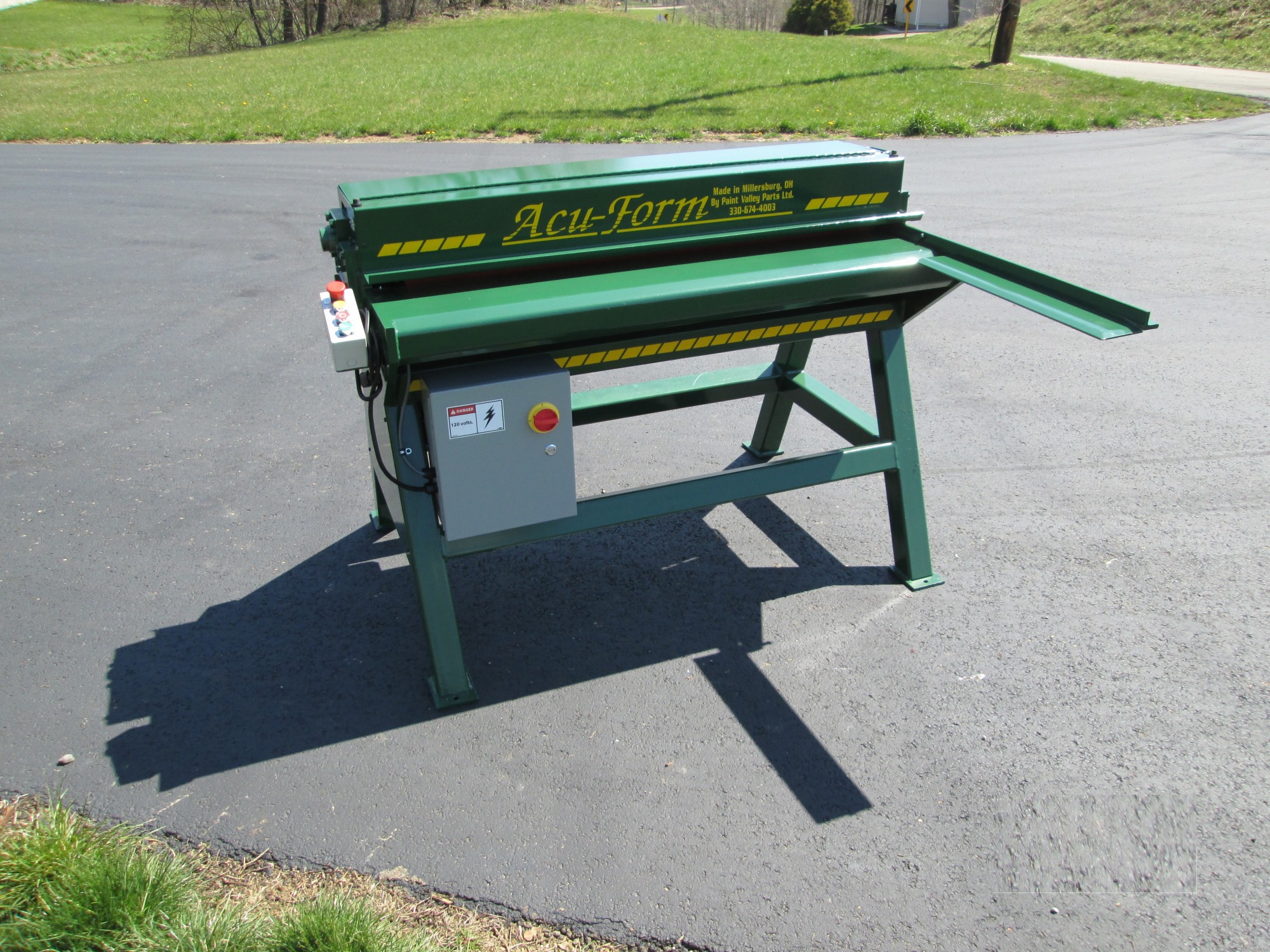

Slitter

There are preloaded cup and cone bearings at the drive end of the shaft which eliminates end to end movement while the opposite end there is a removable bearing plate that has bullet nose dowel pins for easy alignment when changing Knives. The urethane rubber feed rolls that feed the material through also keep the material against the entry guide. Power options Available.

  • Serpentine drive chain delivers positive drive
  • 4’’ chrome arbors
  • Tapered blades so unused portion doesn’t mar material
  • Come with 5 sets of through hardened D2 tool steel blades
  • Quick easy blade adjustment with in shaft scale
  • Can handle 48’’ material
  • Width 60’’
  • Length 60’’
  • Height 43’’
  • Height of infeed 36’’
Request a Quote
