Recoiler

Slit Line

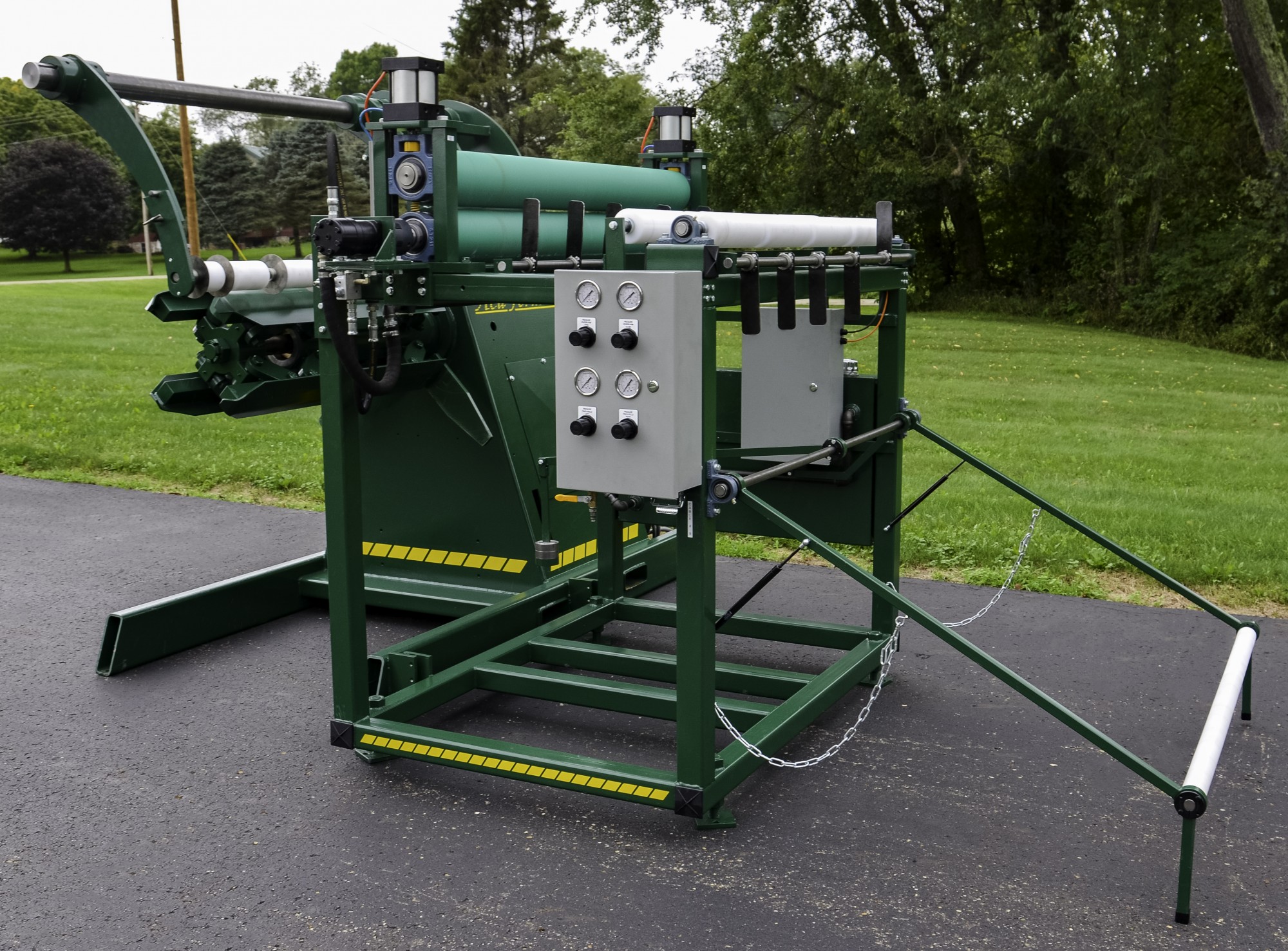

Our quality-designed Recoiler is designed to recoil and tension after slitting, which is built for many years of trouble-free service at an affordable price. The heavy-duty powered scissor expansion unit has pressed bronze bushings with grease fittings for longer wear life, including 4 segments.

Powered to run with your Slit Line
Power Options:

  • Hydraulic
  • Electric
  • Mechanical

The main arbor is supported by 6.5-inch Timken Tapered Roller bearings

Manual forward/reverse control for loading and unloading

Easy access panels for service of Recoiler

Built-in fork pockets for ease of handling

Feed speed of 0– 150 feet per minute

Will handle coil width up to 48”, coil ID of 17”- 21”, and OD of 51

  • Hydraulic braking system to tension coils
  • 6’’ rubber roll with side-to-side air cylinders for adjustment
  • Demand arm to control your speed

Size Dimensions:

  • Width – 96’’
  • Depth – 108’’
  • Height – 81’’
Request a Quote
